Product Details

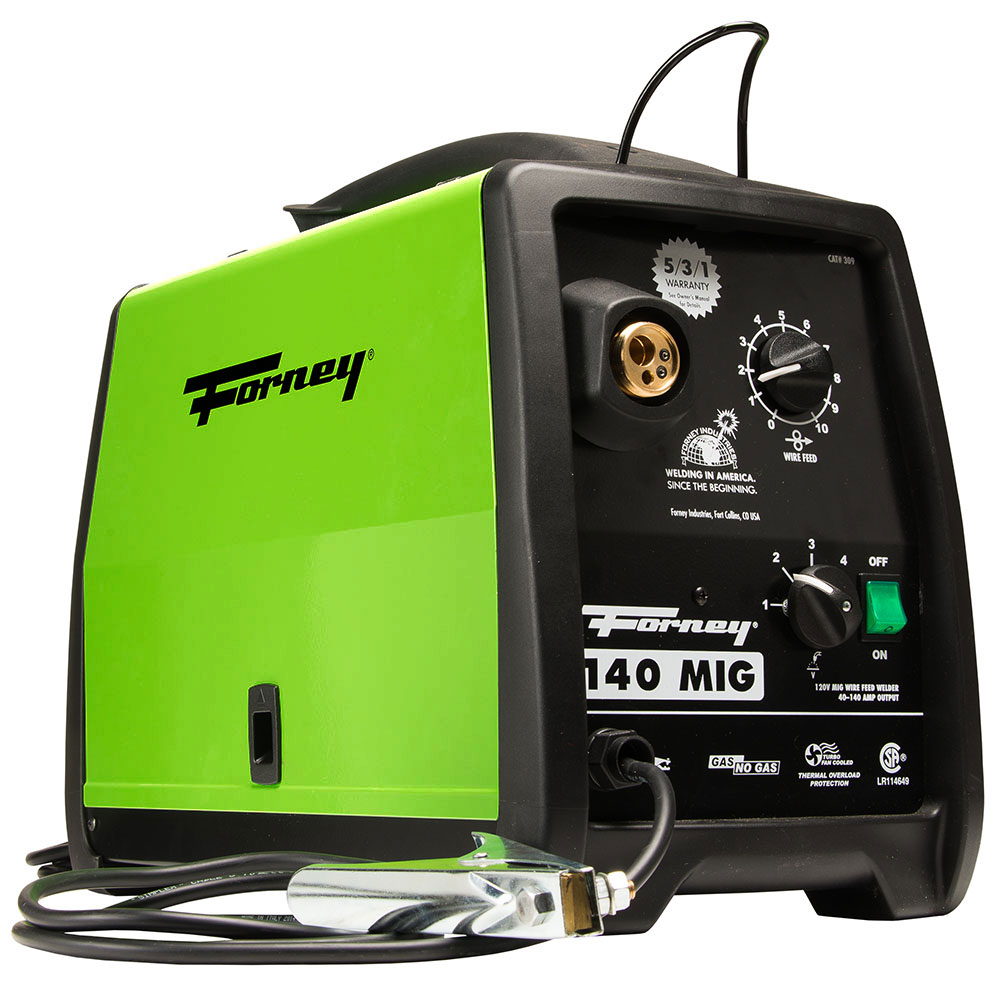

The Forney 140 MIG welder is easy to use with fast disconnect to swap out torch and clean the liner. Runs off of household 120-volt power. Applications include do-it-yourself, metal fabrication, maintenance and repair, farm and ranch and automotive. Includes a 10' MIG gun with 10' lead, 10' ground cable and clamp and a gas hose and regulator. Features a larger cabinet for easy access to 4" (1-2 lbs.) and 8" (10-11 lbs.) spools, upgraded cast aluminum wire drive system and geared idler and drive roll with better de-spooler. Product Specifications: Dimensions: 27-1/4" x 16" x 11.63". Weight: 62 lbs. out of the box. Processes: MIG (GMAW); Flux Cored (FCAW). Input power: 120-volt. Amperage range: 30-140 AMPS. Wire diameter range: .024" - .035". Plate thickness range: 24 ga. - 1/4". Euro connect torch with Tweco® style consumables. Torch wrap included for cable organization. Torch with built in strain relief which extends cable life. Duty cycle: 115 AMP, 19.75-volt @ 20% duty cycle; 90 AMP, 18.5-volt @ 35% duty cycle; 60 AMP, 21-volt @ 60% duty cycle; and 55 AMP, 16.75-volt @ 100% duty cycle.
